A Legacy of Excellence in Q-Switched Nd:YAG Technology
Laser toning and pigmentation treatments
TRI-BEAM PRO uses Q-switched Nd:YAG laser technology for the treatment of pigmentation concerns, melasma, uneven skin tone and tattoos. With multiple treatment capabilities available from one platform, it offers clinics a versatile solution for laser toning, pigmentation correction and tattoo removal without requiring a separate device for each indication.

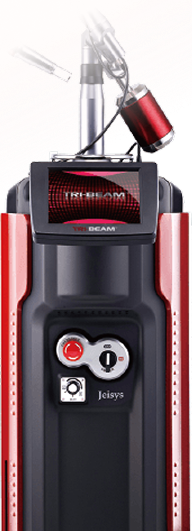

TRI-BEAM Pro
Gen Tech with Quasi-Long Pulse
The most effective way to cure both pigmentation lesions and fine wrinkles.
Various Beam Mode
Easy to change G/TH/GN/532nm beam mode with one touch.
2 Pulse, 20Hz/ Powerful Rich-PTP Toning
– Fast and effective treatment.
– Double pulsed Rich-PTP delivers higher efficacy and minimizes the adverse effects for Melasma treatment.
Beam Profile
– True Top Hat beam minimizes damages on epidermis.
– Gaussian mode for deeper and stronger treatment, only with TRI-BEAM PREMIUM™.
2 Pulse, 20Hz
20Hz (Subject to regional registration)
1 Pulse, 10Hz
2 Pulse, 10Hz
True Top Hat Mode
Beam Profile
Melasma
Gaussian Mode
Beam Profile
Ota Nevus,
Tattoo Removal

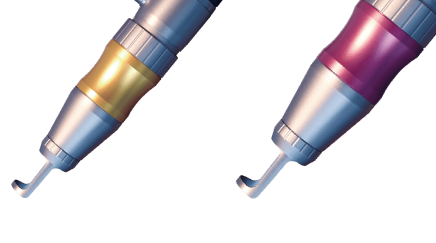

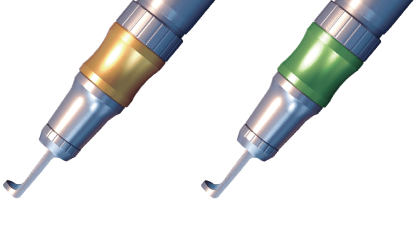

Handpiece
| Zoom | Collimation | Fractional 1064nm | Fractional 532nm | Dye 585nm | Dye 650nm |
|---|---|---|---|---|---|
 |  |  |  | ||
| 2~10mm | 7mm | 5 X 5mm 81dots | 4.5 X 4.5mm 81dots | 2mm | 2mm |
| Pigmented Lesions, Tattoo Removal | Melasma | Pigmented Lesions, Tattoo Removal | Color Tattoo Removal | ||
| Zoom | Collimation |
|---|---|
|
|
| 2~10mm | 7mm |
| Pigmented Lesions, Tattoo Removal |
Melasma |
| Fractional 1064nm | Fractional 532nm |
|---|---|
|
|
| 5 X 5mm 81dots | 4.5 X 4.5mm 81dots |
| Pigmented Lesions, Tattoo Removal |
|
| Dye 585nm | Dye 650nm |
|---|---|
|
|
| 2mm | 2mm |
| Color Tattoo Removal | |
Real Results
Before
After
Before
After
Before
After
Before
After
Before
After
Before
After
Before
After
Before
After
Specifications
| Laser Medium | Nd:YAG(Q-Switched) |
|---|---|
| Operating Parameters | Q-Switched and Quasi-Long Pulse |
| Wave Length | – 532/1064nm – 585/650nm(Option) |
| Pulse Energy | – G mode: 1064nm, 10~1500mJ – TH, PTP OFF mode: 532nm, 10~500mJ |
| Repetition Rate | 1 ~ 10Hz / 1 ~ 20Hz (Subject to regional registration) |
| Pulse Width | – Q-Switched: 5~10ns – Quasi-Long Pulse: 300μs |
| Spot Sizes | Zoom HP: 2~10mm Collimation HP: 7mm Fractional HP: 5mm X 5mm (1064nm), 4.5mm X 4.5mm (532nm) Dye HP: 2mm (585nm, 650nm) |
| Electrical Power | 230V, 50/60Hz, 2.5kVA |
| Weight | 102.5kg |
| Dimensions (mm) | 970mm(H) x 400mm(W) x 918mm(L) without articulated arm |
| Beam Delivery | Articulated arm with up to 240cm reach, 7-joints, 360° rotation |
